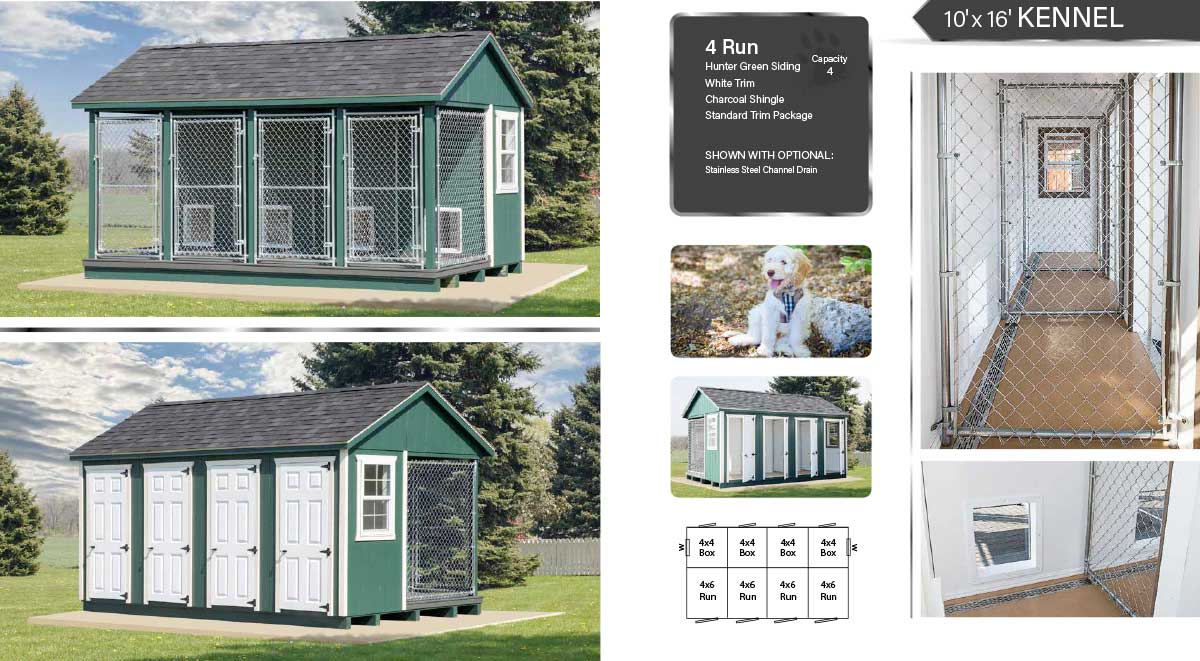

Fully Assembled 10 x 16 Amish Built 4 Run Dog Kennel

Rating:
100% of 100
SKU
1534
$23,970.00
Freight Charges May Apply
Ships in 8 - 10 weeks


Additional Information

More Information
CollectionCommercial Kennels
Availability 8 - 10 weeks
Product DimensionsOverall: 16ft L x 10ft W (4 - 4x4 Shelters; 4 - 4x6 Runs)
Weight1200
Handcrafted InPennsylvania, USA
Warranty30 yr Limited Warranty on Siding and Shingles
AssemblyFully Assembled

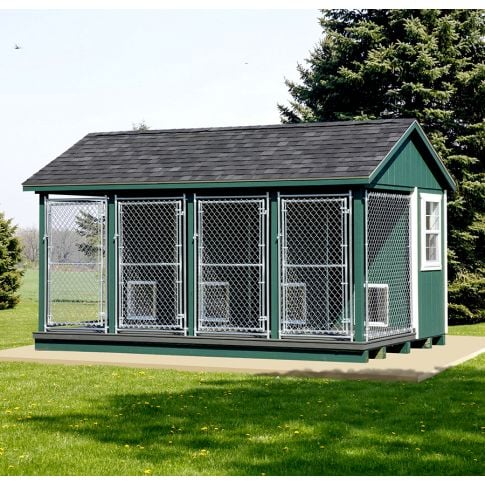

Shown inHunter Green Siding with White Trim and Charcoal Shingle
Number of Runs4 Runs
Kennel Heating OptionHeated
Siding & Framing MaterialWood Siding on Wood Frame
ShippingFreight Charges May Apply
Shipping RegionsShips to USA excluding Hawaii and Alaska
ConditionNew

Details

This High quality, Amish Handcrafted 10 x 16 Large 4 Run Dog Kennel is proudly Made in America!  This dog kennel shipped fully assembled and is available with many upgrades.  Do you live in cold weather climate?  All of our kennels come fully insulated with R-7 insulation (R-11 insulation is available upon request) and an insulated standard door.  Select the insulated metal roof and electric package with space heater for additional insulation and warm.

We have a wide range of paints, stains and roof colors to choose from to make you kennel look one of a kind.

Standard Features include:

  • 16” on center, 2x4 construction
  • Pressure treated 2x4 Floor Joists Pressure Treated 4x4 Runners
  • 5/8” Smartfloor
  • R-13 Insulation (upgrades available)
  • R-7 Spray Foam Insulated Floors
  • Cathedral Ceilings
  • Trusscore® PVC lined interior walls
  • Polyurea® coated flooring (hard rubber surface)
  • 11.5 gauge chain link dividers (upgrades available)
  • 17x20 side hinge plexiglass dog doors (upgrades available)
  • Poly decking in exterior run
  • 30 yr architectural shingles (upgrades available)
  • 50 yr Duratemp® siding (upgrades available)
  • Six panel insulated metal entry door
  • 24x36 double pane sliding windows w/ screens

Traditional Model Series:

  • 3 1/2" Overhangs
  • 6/12" Roof Pitch

Elite Model Series:

  • Wider Trim Package
  • 7" Overhang
  • 7/12" Roof Pitch

Customization Available:
We make every attempt to offer as many sizes, options and upgrades as possible on our website, but you may be looking for something unique that you do not see on our website. Please contact us with any special requests for customization and we'll do our best to meet your needs. We will create a quick line drawing to your specifications and once the drawing is approved by you, we'll get a price quote and proceed from there.

Preparing the Site for Your New Structure:
Customer is responsible for all site prep and permits. Whatever surface you choose to place your structure on, that surface should extend out approximately 1 foot wider on all sides of the building. Most importantly, be sure you have a level surface area.

There are several ways to prepare your site including the following:

Crushed Stone - We recommend using crushed stone (3/4" clean) approximately 4-5" deep. We also advise that you have 12" of stone around the perimeter of the outbuilding to control weeds and keep moisture away from the building. Before installing the stone, you can either dig out 4" of soil and simply make the stone ground level, or you can make a frame with 4"x4"s or landscape timbers and then fill flush to the top with stone.

Concrete Pad- Another option would be to have a concrete pad installed. If you are going to have a concrete pad installed, remember to keep your pad as close to ground level as possible. We recommend that you make the pad 12’’ wider on each side of the building.

Using crushed stone or a concrete pad will increase the longevity of your building. Having the proper site allows needed air flow, which will keep your structure looking great for years to come!

Permits: If it is necessary to obtain a building permit or cross a neighboring property, it is the buyer’s responsibility to obtain a neighbor’s permission of the necessary permit prior to delivery.

Do not wait to prep the site!  Prepare it as soon as possible, so it is ready prior to delivery.

Shipping and Delivery Info:

Please see lead times list above for an estimated completion date of your kennel. Once your kennel is completed, we will then schedule a truck for delivery. Your kennel will be shipped on a large trailer and will be set into the final location using a fork lift. Our driver will need access to the property and be able to maneuver the kennel into position. Any existing fencing, trees, etc will need to be considered before delivery.  They'll need approximately 2ft wider than your kennel and about 14ft high clearance from low lying trees.   The driver will contact you before delivery to arrange for a convenient delivery time.  Please have all nesseccary site preparation completed before delivery.  If you need a delivery time later than what is shown on our site, please let us know at the time of your order and we'll do our best to accomodate you.

Contact us for a shipping quote to the West Coast.

Here's a video that will give you an idea of the delivery process:


Download Our Latest Kennel Catalogs

Would you like our latest dog kennel catalogs in PDF form?  Download both our residential and commercial grade kennel catalogs below.


Customer Questions
Is it possible to get line drawings in advance for permitting purposes?
Yes, please email us directly for any supporting documentation you may need for codes and permitting process.
is it possible to set a date for delivery?
While we can't guarantee an exact delivery date, we can certainly hold and order or try to meet, as close as possible, a delivery window. Contact us directly for specific delivery inquiries.   Contact Us Here
